32 21 151 Replacing left or right track rod end: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the track rod end to track rod screw connection is released, it is necessary after reinstallation to carry out a chassis/wheel alignment check.

Release nut (1) and remove track rod end (2) from swivel bearing.

Installation note:

Keep track rod end to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 32 21 3AZ .

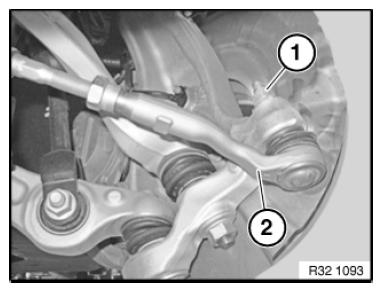

Fig 1: Identifying Track Rod End And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Determine dimension (A) to simplify following adjustment of front axle.

Slacken nut and clamping ring.

Unscrew track rod end from track rod.

Installation note:

Check GAITER for damage, replace if necessary.

Refit clamping ring (1).

Screw track rod end onto track rod to dimension (A).

Tightening torque 32 21 2AZ .

Fig 2: Identifying Track Rod End Screwing Dimension Onto Track Rod

Courtesy of BMW OF NORTH AMERICA, INC.
