32 41 420 Replacing expansion hose part 1 (with ARS) (from vane pump) N63: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

32 1 270

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plug 32 1 270 .

Recycling:

Catch and dispose of hydraulic fluid in a suitable expansion tank.

IMPORTANT: Pressure line and connections must be provided with suitable seal plugs 32 1 270 immediately after removal!

Necessary preliminary tasks:

Lower FRONT AXLE SUPPORT

Release screw connection (1) on power steering pump.

Tightening torque 32 41 6AZ .

Release nut (2) from line clip and remove lines.

Tightening torque 32 41 7AZ .

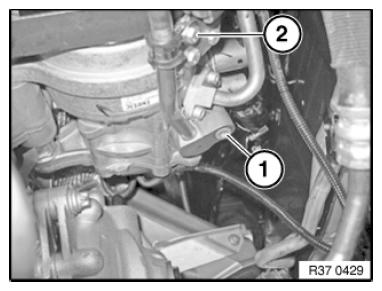

Fig 1: Identifying Power Steering Pump Screw Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) from line clip.

Tightening torque 32 41 7AZ

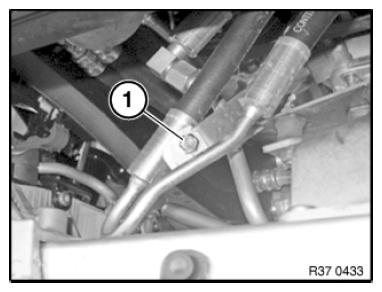

Fig 2: Identifying Line Clip Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection (1) and remove line in downward direction.

Tightening torque 32 41 11AZ

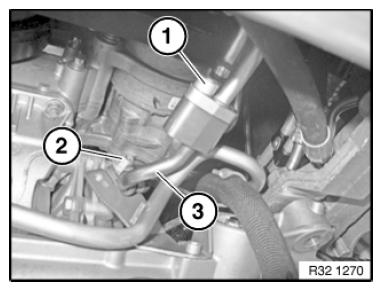

Fig 3: Identifying Hydraulic Line, Clip And Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
