32 41 314 Replacing suction line for power steering (from fluid reservoir to connecting piece): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable expansion tank.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir
Remove OIL RESERVOIR from body
Remove RAW-AIR SUPPLY on left

Unfasten hose clamp (1).

Disconnect intake pipe (2) from oil reservoir.

Installation note:

Marks on oil reservoir and intake pipe must match up.

Replace hose clamp.

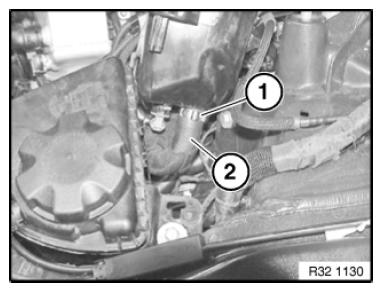

Fig 1: Identifying Intake Pipe And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (1).

Remove intake pipe (2).

Installation note:

Replace hose clamp.

Make sure intake pipe is laid without tension and with sufficient distance to adjoining components.

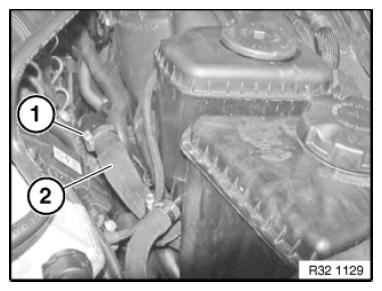

Fig 2: Identifying Intake Pipe And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
