32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in REPLACING DRIVE BELT
.

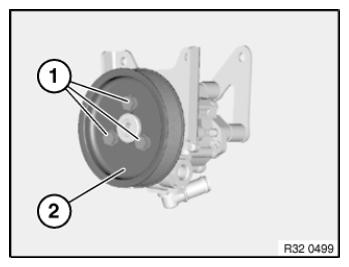

Slacken screws (1)
Relieve tension on DRIVE BELT and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation note:
Lettering on belt pulley (2) must point forwards.
Replace microencapsulated screws.
Tightening torque 32 41 4AZ .
