Procedure, toe/camber adjustment for ride-height-dependent measurement (unloaded)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

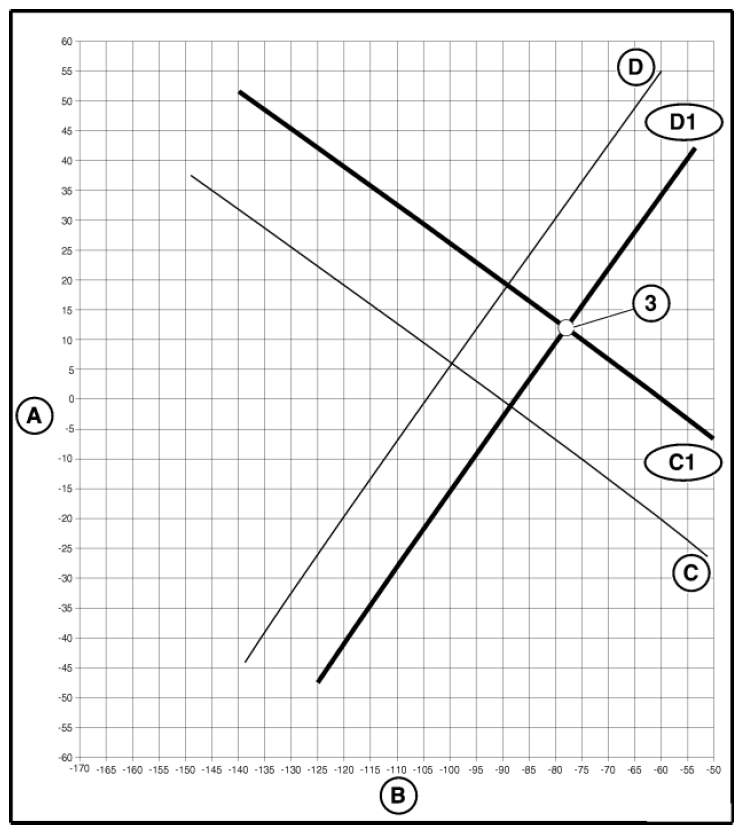

Fig 1: Toe/Camber Adjustment Graph - Ride-Height-Dependent Measurement (Unloaded)

Courtesy of BMW OF NORTH AMERICA, INC.

Unit of measurement in diagram: [min]

A	Toe	3	Specified setpoint value from wheel/axle analyzer system
B	Camber
C1	Toe/camber value adjustment by wishbone
D1	Toe/camber value adjustment by swinging arm
