Adjusting on wishbone

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (1) prior to adjustment and join to 5 Nm.

Turn eccentric bolt (2) until intermediate adjustment value is obtained.

Tighten nut (1).

Tightening torque 33 32 8AZ .

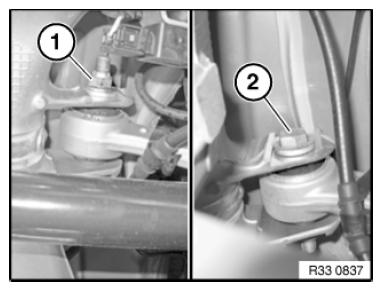

Fig 1: Identifying Wishbone Eccentric Bolt And Nut
G08504709Courtesy of BMW OF NORTH AMERICA, INC.
