Adjusting on swinging arm

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (1) prior to adjustment and join to 5 Nm.

Turn eccentric bolt (2) to adjust setpoint value.

Tighten nut (1).

Tightening torque 33 32 2AZ .

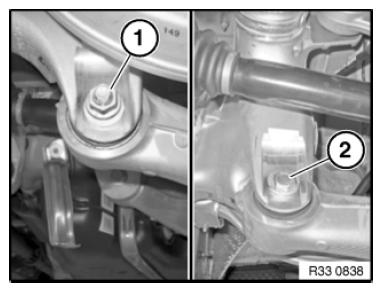

Fig 1: Identifying Swinging Arm Eccentric Bolt And Nut
G08504710Courtesy of BMW OF NORTH AMERICA, INC.
