4380 Measurement aid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0493962 614380 Measurement aid Minimum set: Measuring and testing equipment MP

NOTE: (Test box, 105-pin, complete) For connecting all adapter cables to 61-pin to 105-pin plug connections. [Released]

SI number: 02 04 01 (710)

Consisting of:

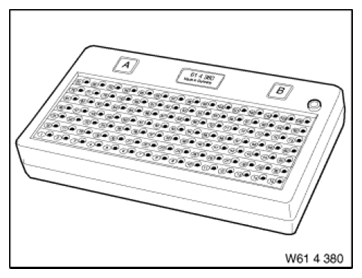

Fig 1: Identifying Measurement Aid (0493962)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0494078 Line

NOTE: (Measuring cable set) 2/4 mm system, cable length: 200 mm [Released]

= 0494075 Measurement aid
NOTE: (Test box, 105-pin) Without accessories. Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only. [Not available separately]
= 0494076 Line
NOTE: (Measuring cable, black) 2 mm system, cable length: 750 mm Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only. [Not available separately]
= 0494077 Line
NOTE: (Measuring cable, red) 2 mm system, cable length: 750 mm Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only. [Not available separately]
= 0494079 Pressure gauge

NOTE: (Ground cable) For shielding, cable length: 1.5 m. Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only. [Not available separately]
