5090 Socket nut

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0495595 335090 Socket nut Minimum set: Mechanical tools MW

NOTE: Socket nut z37 For holding rear axle gearbox input shaft when releasing and tightening down flange nut. [Released]

Storage Location: A25

SI number: 01 18 08 (482)

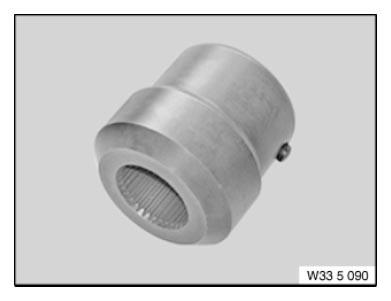

Fig 1: Identifying Socket Nut (0495595)

Courtesy of BMW OF NORTH AMERICA, INC.
