4300 Spindle

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0496534 334300 Spindle Minimum set: Mechanical tools MW

In conjunction with: 33 4 030, 33 4 040

NOTE: (spindle TR20 with nut) For installing and removing rubber mounts [Released]

SI number: 01 16 08 (476)

Consisting of:

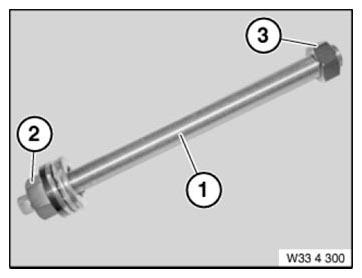

Fig 1: Identifying Spindle (0496534)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0496551 Nut
NOTE: (Nut TR20) [released]
2 = 0496536 Nut
NOTE: (Nut TR20 with thrust bearing) [released]
1 = 0496535 Spindle
NOTE: (Spindle TR20 (length 300 mm)) [released]
