2200 Device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0496062 332200 Device Minimum set: Mechanical tools MW

NOTE: For removing and installing output shaft in drive flange as well as for removing front wheel bearing unit. Replaced by 81 64 2 160 009 [Blocked]

Storage Location: C8

Consisting of:

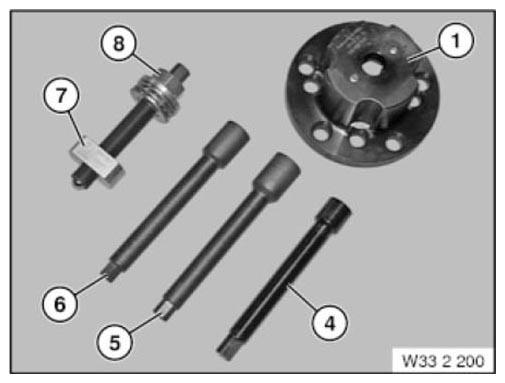

Fig 1: Identifying Device (0496062)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0496064 Holder
NOTE: (Counter support) 0496208 = 119850 [Released]
1 = 0496063 Basic body
NOTE: [Blocked]
3 = 0496066 Spindle
NOTE: (spindle M20x1.5 / length 150 mm) For pressing out. Series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85 [Released]
4 = 0496067 Spindle
NOTE: (Spindle M20x1.5 / length 180 mm) For drawing in. Series: E30 [Released]
6 = 0496069 Spindle
NOTE: (Spindle M20x1.5 / length 190 mm) For drawing in. Connection: M24x1.5 Series: E36, E46 [released]
7 = 0496070 Shaped part
NOTE: (Shaped part) [released]
8 = 0496071 nut
NOTE: (Nut with thrust bearing) Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, RR1 [Released]
5 = 0496068 Spindle
NOTE: (Spindle M20x1.5 / length 190 mm) For drawing in. Connection: M27x1.5 Series E31, E52, E53, E60, E61, E65, E66, E67, E83 [Released]
