1020 Holding sleeve

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0492074 331020 Holding sleeve MW

NOTE: For pressing the taper roller bearing on the drive bevel gear [Released]

Storage Location: C16

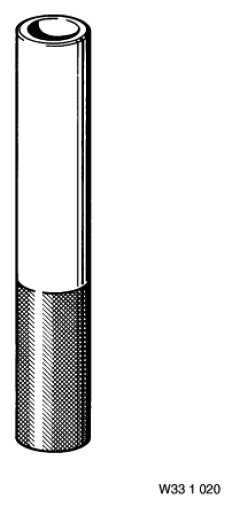

Fig 1: Identifying Holding Sleeve (0492074)
G06876311Courtesy of BMW OF NORTH AMERICA, INC.
