22-1040 Device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0495240 221040 Device Minimum set: Mechanical tools MW

NOTE: For removing and installing rubber mount on transfer box: ATC300, ATC350, ATC450 [Released]

Storage Location: B50

SI number: 01 04 05 (175)

Consisting of:

= 0495263 Bridge
NOTE: Discontinued, only available via complete tool [cannot be ordered separately]

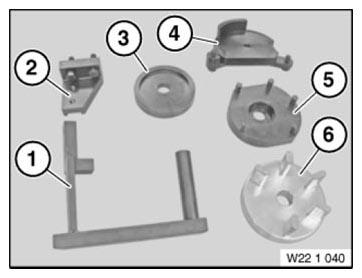

Fig 1: Identifying Device (0495240)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0495264 Holder
NOTE: Discontinued, only available via complete tool [cannot be ordered separately]
= 0495265 Washer
NOTE: (Thrust washer) Can only be ordered as part of complete tool 11 4 200 = 0491020. [discontinued]
= 0495266 Washer
NOTE: (Profile washer) [Discontinued]
= 0495267 Washer
NOTE: (Washer with cylindrical pins) [Discontinued]
= 0496792 Washer
NOTE: For installing rubber mount in transfer box housing. [Released]

In conjunction with: 22 1 044, 33 4 465 / 466
