11-9890 Gauge

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0496359 119890 Gauge MW

NOTE: For fixing the camshaft in place when adjusting the valve timing. [Released]

Storage Location: C54, C53

SI number: 01 06 08 (437)

Consisting of:

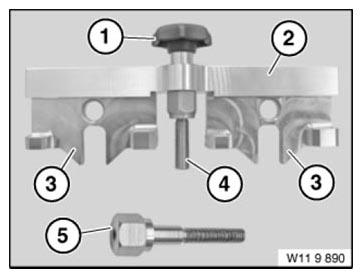

Fig 1: Identifying Gauge (0496359)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0496383 Adapter
NOTE: (Adapter N74) [released]
4 = 0496382 Adapter
NOTE: (Adapter N63) [released]
3 = 0496381 Gauge
NOTE: (Gauges) [released]
2 = 0496380 Bridge
NOTE: [Released]
1 = 0496379 Handle
NOTE: (Rotary handle) [released]
