11-9450 Holder

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0493926 119450 Holder Minimum set: Mechanical tools MW

NOTE: (Counter support with socket and needle) For counter support of crankshaft when releasing/tightening down central bolt [released]

Storage Location: A45

SI number: 01 14 01 (766)

Consisting of:

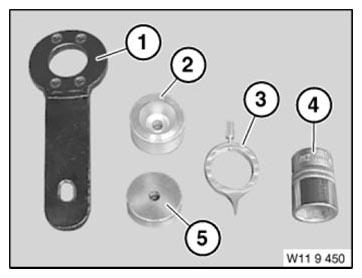

Fig 1: Identifying Holder (0493926)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0494228 Washer
NOTE: Height 22.5 mm with hexagon screw [released]
3 = 0494229 Needle
NOTE: [Released]
5 = 0494317 Washer
NOTE: Height 10 mm with hexagon screw [released]
1 = 0494227 Lever
NOTE: [Released]
4 = 0494230 Socket WAF 46
NOTE: (Socket, AF 27) [released]
