11-9260 Holder

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0493938 119260 Holder Minimum set: Mechanical tools MW

NOTE: (Counter support with screw connection) For holding the flywheel when gearbox is removed [Released]

Storage Location: B43

SI number: 01 01 01 (662)

Consisting of:

= 0494034 Holder
NOTE: (Individual counter support) [Released]

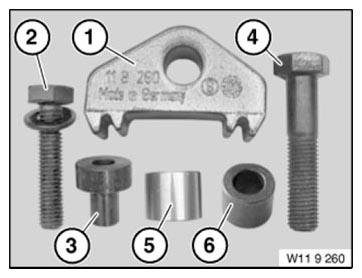

Fig 1: Identifying Holder (0493938)
Courtesy of BMW OF NORTH AMERICA, INC.
= 0494035 Screw
NOTE: (Screw (M10 thread) with washer) For screwing counter support [Released]
= 0494129 Bush
NOTE: (Bush for counter support) For counter support, for retaining flywheel when gearbox is removed Engine: N62, N73 [Released]
= 0494130 Screw
NOTE: (Screw (M12 thread)) For counter support for retaining flywheel when gearbox is removed [Released]
= 0494793 Bush
NOTE: [Released]
= 0495216 Bush
NOTE: For counter support, for retaining flywheel when gearbox is removed Engine: M57TU2 [Released]
