11-8720 Socket WAF 46

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0496106 118720 Socket WAF 46 Minimum set: Mechanical tools MW

NOTE: (Long socket SW24) For removal and installation of oil pressure sensor. (Stahlwille or HAZET) [released]

Storage Location: A24

SI number: 01 04 07 (352)

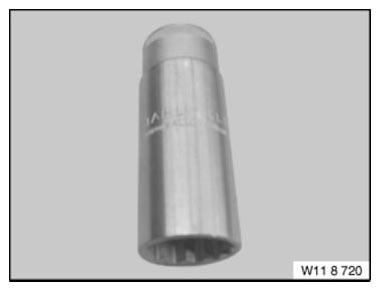

Fig 1: Identifying Socket WAF 46 (0496106)
G08464348Courtesy of BMW OF NORTH AMERICA, INC.
