24 14 004 Replacing shaft seal for selector shaft (GA8HP45Z) (N55 engine)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale the fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

After completing work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove MECHATRONICS .
Remove EXHAUST SYSTEM
Remove heat shields
Detach PROPELLER SHAFT center mount.
Detach transmission crossmember
Lower transmission using workshop jack

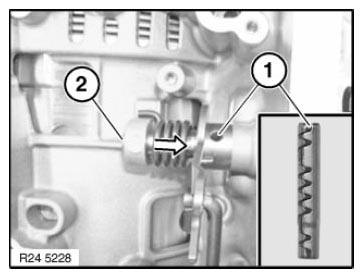

Using a suitable tool, drive clamping sleeve (1) out of selector shaft.

Withdraw selector shaft (2) outwards.

NOTE: Return spring is under tension.

Installation note:

Replace selector shaft (2).

Replace clamping sleeve (1).

Insert narrower end of clamping sleeve (1) into hole first. Using a suitable tool, drive in clamping sleeve until it is flush with the hole.

Fig 1: Removing Clamping Sleeve Out Of Selector Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

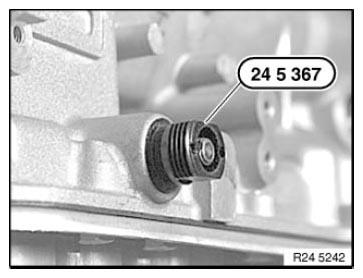

Screw in special tool 24 5 367 until it is firmly connected with radial shaft seal.

Fig 2: Screwing Special Tool 24 5 367

Courtesy of BMW OF NORTH AMERICA, INC.

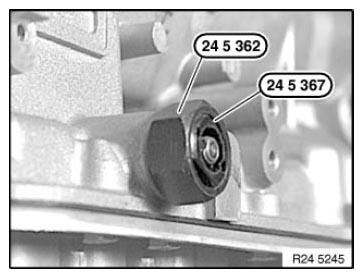

Screw special tool 24 5 362 onto special tool 24 5 367 and tighten down.

This pulls the shaft seal out of the transmission housing.

Fig 3: Screwing Special Tool 24 5 362

Courtesy of BMW OF NORTH AMERICA, INC.

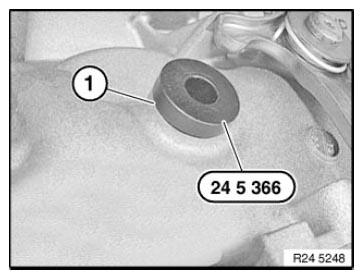

Oil sealing lip on shaft seal (1).

Drive radial shaft seal (1) fully home using special tool 24 5 366 and plastic hammer.

Fig 4: Removing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.
