12 14 512 Replacing pulse generator on left exhaust camshaft (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Necessary preliminary tasks

Read out fault memory of DME control unit; if necessary, work through test schedules.
Switch off ignition.
Remove left INTAKE FILTER HOUSING .

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 3AZ .

Remove pulse generator (3).

Installation note:

Replace sealing ring and coat with antiseize agent.

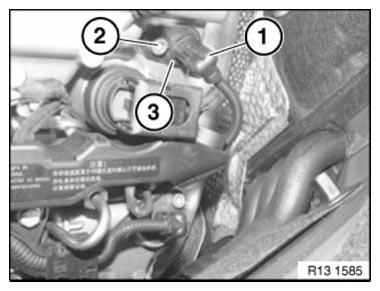

Fig 1: Identifying Pulse Generator, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.

Delete fault memory.
