11 28 050 Replacing A/C compressor drive belt with belt tensioner (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Release screws (1) on vibration absorber only if removal position is adjusted.
If contaminated with hydraulic fluid: Replace drive belt.
Crank engine at central bolt in direction of engine rotation.

Installation note:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary work

Remove DRIVE BELT for alternator.

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Release screws (1).

Tightening torque 11 28 2AZ .

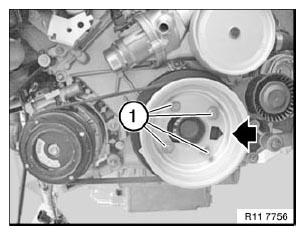

Fig 1: Identifying Belt Tensioner Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Belt pulley is pretensioned.
Belt pulley tension is relieved abruptly during the cranking process!

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Remove elasto-belt.

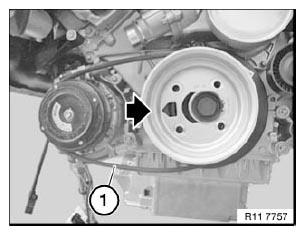

Fig 2: Identifying Elasto-Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
