11 14 110 Removing and installing lower timing case cover (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470 .

Necessary preliminary work

Remove ENGINE .
Remove both cylinder heads . See 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N63) or 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N63) .
Remove LOWER OIL SUMP SECTION .
Remove UPPER OIL SUMP SECTION .
Remove alternator BELT TENSIONER .
Remove VIBRATION DAMPER .
Remove COOLANT PUMP .
Remove ALTERNATOR .
Remove A/C compressor.
Remove hub for VIBRATION DAMPER .

Release screws along lines (1).

Remove timing case cover (2) towards front.

Clean sealing surfaces with special tool 11 4 470 .

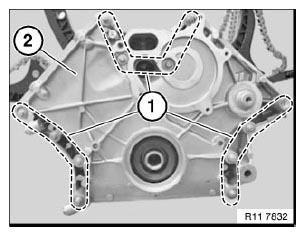

Fig 1: Identifying Timing Case Cover And Screws Lines

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check jump guard for damage.

Release screw (1).

Tightening torque 11 14 1AZ .

Remove jump guard (2).

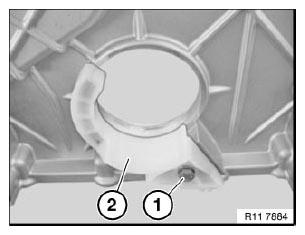

Fig 2: Identifying Jump Guard And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces with special tool 11 4 470 .

Installation note:

Preposition all bolts in timing case cover.

Replace beaded metal gaskets (1, 2 and 3).

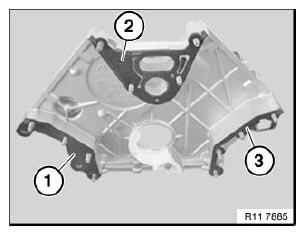

Fig 3: Identifying Beaded Metal Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Fit timing case cover (2).

Initially tighten all bolts to approx. 5 Nm.

Fully tighten all bolts in alternate sequence.

Tightening torque 11 14 2AZ .

Installation note:

Wait for PU material to emerge at sealing joints.

Carefully wipe off protruding PU material.

Fig 4: Identifying Timing Case Cover And Screws Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Replace RADIAL SHAFT SEAL in gear case cover at bottom .

Assemble engine.
