11 15 140 Replace oil separator (N63 O1)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

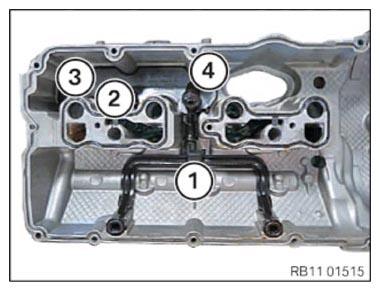

Release screws in the sequence 4 - 1.

Remove the oil separator with the distributor.

Installation:

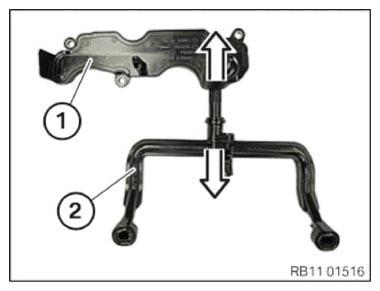

NOTE: Ensure that the oil separator gasket (1) is correctly installed in distributor (2).

IMPORTANT: Risk of damage!

All engine oil and contamination must be removed from all threaded holes.

Compliance with torque specifications for screw connections is mandatory!

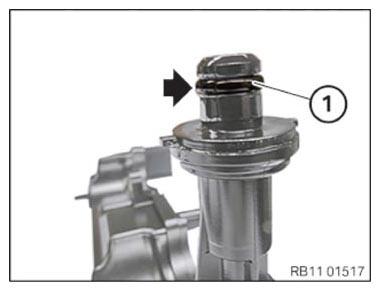

NOTE: Ensure gasket (1) is correctly installed between the oil separator and the channel.

Install the oil separator with duct.

Parts: Replace screws.

Tighten screws in the sequence 1 - 4.

Tightening torque 11 12 11AZ .

Required follow-up work:

Install the cylinder head cover. Refer to INSTALLING LEFT CYLINDER HEAD COVER or INSTALLING RIGHT CYLINDER HEAD COVER .
