Check oil level

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Check fluid level with engine switched off at expansion tank of power steering/ride height control system. The oil temperature should be approx. 20 °C here.

Ensure that the cap is fully screwed in prior to the fill level check.

If necessary, add hydraulic fluid up to Max. marking (1).

Fig 1: Identifying Maximum And Minimum Oil Level Marks

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If the oil level has dropped to the min. marking (2), you must inform the customer and check the power steering and ride height control for leaks and issue a separate invoice for this work.

It is not enough merely to top up the fluid.

NOTE: To avoid mix-ups when filling with hydraulic fluid, mark the fluid reservoirs or their caps with identification marks.

ATF Automatic transmission fluid

CHF Pentosin CHF11S

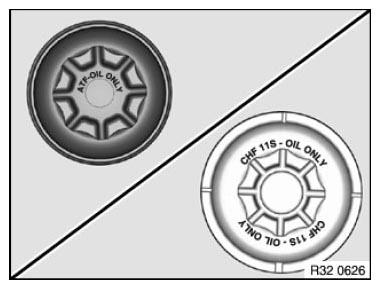

Fig 2: Identifying Automatic Transmission Fluid And Pentosin CHF11S Identification Mark On Fluid Reservoirs

Courtesy of BMW OF NORTH AMERICA, INC.
