00 11... Checking/topping up oil level in rear axle final drive
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear axle final drive, it is essential to use only APPROVED OIL in the rear axle final drive.
To avoid serious damage to the rear axle final drive, it is essential to use only APPROVED OIL in the rear axle final drive.

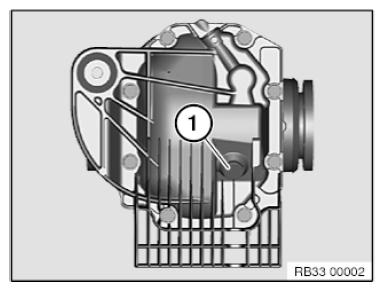

Open screw plug (1).
Tightening torque 33 11 2AZ
Check oil level.
If necessary, pour in final drive oil up to lower edge of opening for oil filler plug (1).
Installation note:
Replace screw plug (1) with O-ring.
