00 11 500 Checking/topping up oil level in automatic transmission (GA6HP26Z/GA6HP32Z)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation

IMPORTANT: Use only the approved transmission oil.
To set the correct level, it is mandatory that the service function "Transmission control unit: oil adjustment" is performed using the diagnosis system.
Failure to comply with this requirement will result in serious damage to the automatic transmission.

Conditions for oil level adjustment with BMW diagnosis system:

Initial condition:
Transmission oil temperature 30° to 50° C
Final condition:
Transmission oil temperature 30° to 50° C

Performing oil-level adjustment:

An oil-level adjustment is necessary in certain fault code entries in the automatic transmission and after repair (e. g. mechatronic replacement, converter replacement, transmission replacement).

Connect diagnosis and information system.
Open service function (powertrain)
Carry out oil level check in accordance with instructions

Adding transmission oil

Stand vehicle on a level surface and secure against rolling off.

Undo oil filler plug (1).

Add automatic transmission fluid according to instructions in the BMW diagnosis system.

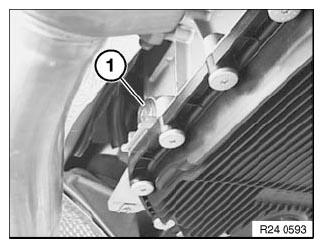

Fig 1: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Renew sealing ring/oil filler plug.

Tightening torque: 24 11 3AZ .

Tighten down oil filler plug using

Hexagon wrench AF 8
Torque wrench
Socket AF 8

Fig 2: Tightening Oil Filler Plug Using Socket Wrench
Courtesy of BMW OF NORTH AMERICA, INC.
