41 00... Frame Alignment Control Body Dimensions

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centerpoint of the bore/screw.

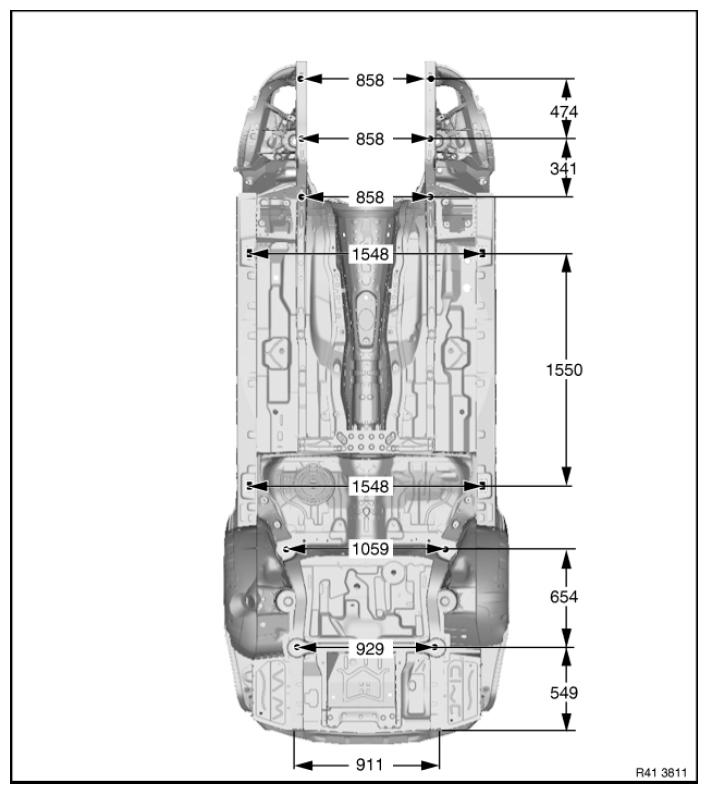

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

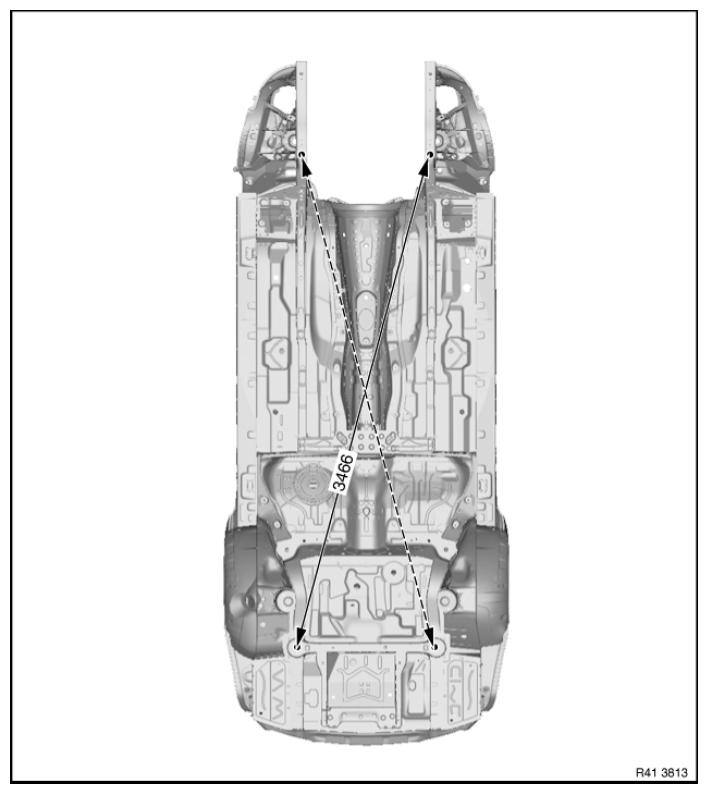

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

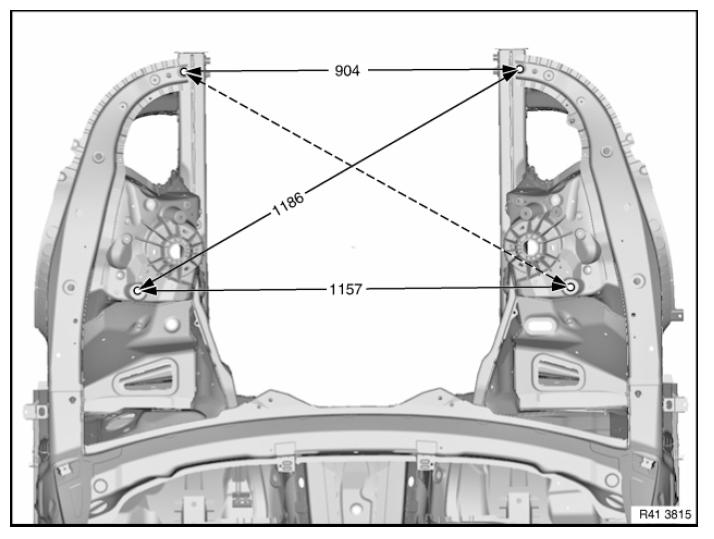

Top View, Front End

Fig 3: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

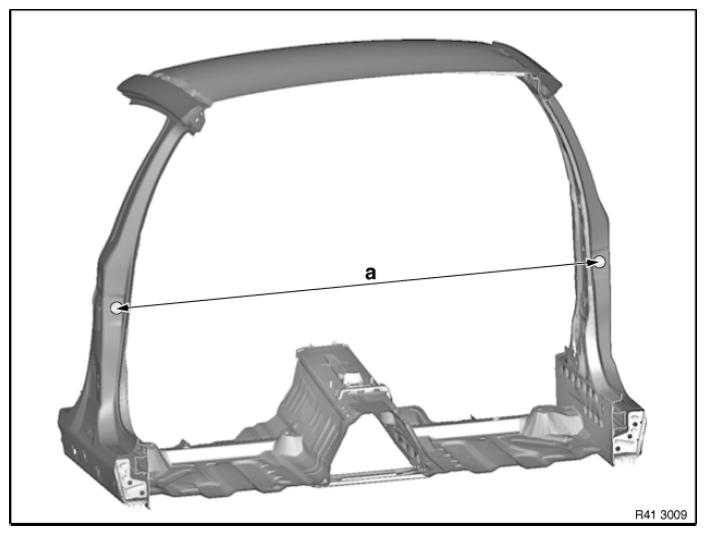

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1634 mm between screw-on points of door brakes.
