41 00... Frame Reference Body Dimension

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Dimension tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

The specified dimensions always refer to the center point of the bore hole/screw.

Underbody view 1

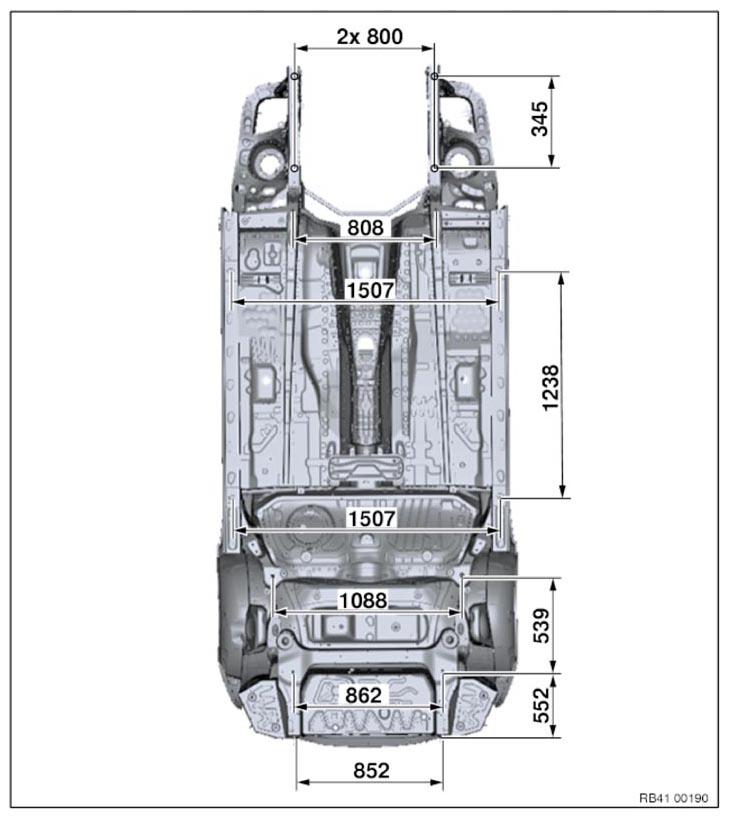

Fig 1: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Underbody view 2

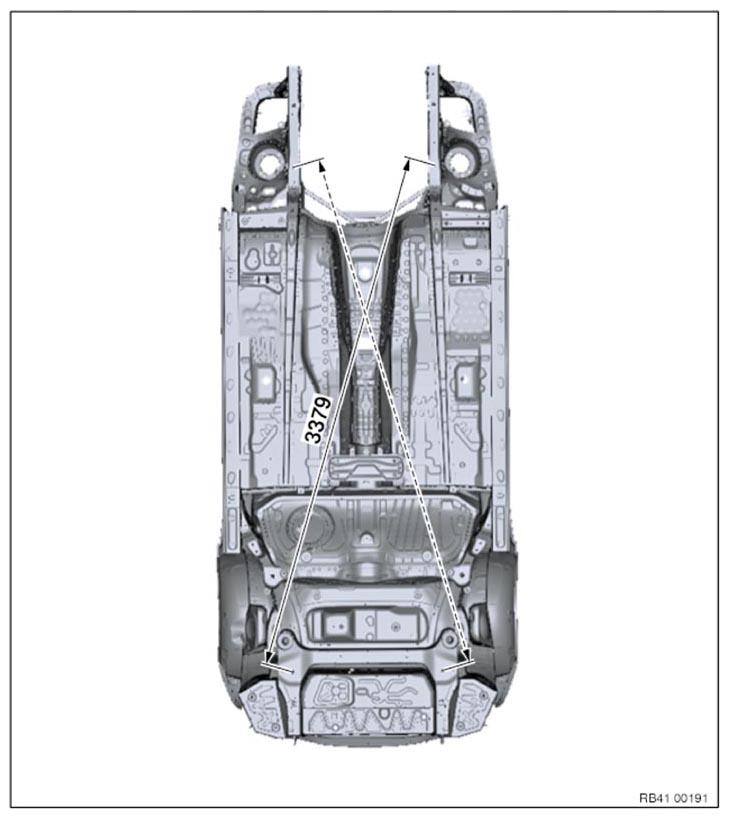

Fig 2: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top view, front end

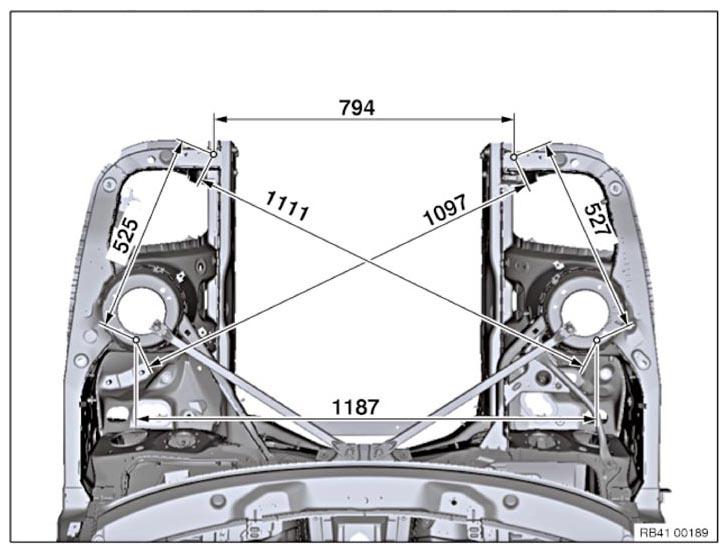

Fig 3: Front Body Frame Reference Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

View, B-pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1548 mm between screw-on points of door brakes.
