16 19 075 Filling SCR reservoir

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 302 783
2 355 172

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.

IMPORTANT: Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.

Screw filler hose 2 302 783 with the flatter connection onto the urea/water solution container.

Then connect the other end of filler hose 2 302 783 to the filler neck of the SCR reservoir.

Hook urea/water solution container onto stand 2 355 172 and fill SCR reservoir.

If the SCR reservoir is full before the urea/water solution container (1) is empty, set down the container (1) and unscrew the filler hose.

IMPORTANT: When unscrewing filling hose, check for escaping urea/water mixture!
Immediately wash off all urea/water mixture with water!

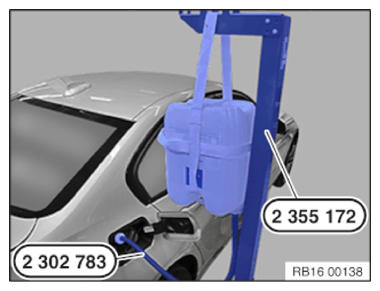

Fig 1: Screwing Filler Hose (2 302 783) With Flatter Connection

Courtesy of BMW OF NORTH AMERICA, INC.
