16 19 010 Drawing off SCR active reservoir contents
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.
Necessary preliminary tasks:
- Remove rear right WHEEL ARCH PANEL .

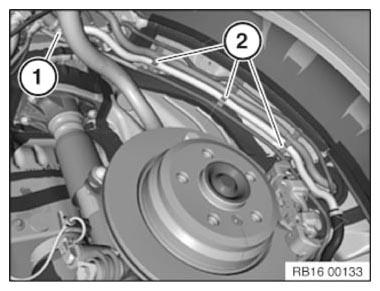

Unlock and disconnect snap fastener (1).
Unclip filler pipe from brackets (2).
Installation note:
Check correct engagement of snap fastener (1) by attempting to pull.
IMPORTANT:

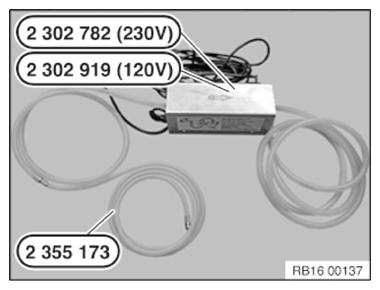

Use extractor unit 2 302 782
(for 230V) or 2 302 919
(for 120V).
Attach adaptor hose 2 355 173 to the intake side of the extractor unit.
Before start-up of extractor unit urea/water mixture:
Comply with equipment
manufacturer's operating instructions and safety regulations.
Note extraction direction (see arrow in illustration)!
Attach adaptor hose 2 355 173 to the intake side of the extractor unit.
Before start-up of extractor unit urea/water mixture:
Comply with equipment
manufacturer's operating instructions and safety regulations.
Note extraction direction (see arrow in illustration)!

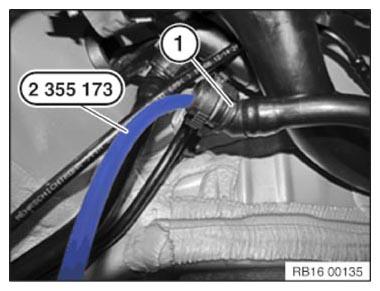

Feed adaptor hose 2 355 173 of the extractor unit into the filler pipe (1).
The extraction hose may need to be twisted when inserting it.
IMPORTANT:
Insertion length of extraction hose 100 cm!
Draw off urea/water mixture.
NOTE:
Do not reuse drawn-off urea/water mixture.
