16 12 060 Removing and installing/replacing carbon canister (US version NVLD)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove right TANK COVER .

Disconnect plug connection (1).

Installation note:

Make sure plug connection latch mechanism is correct.

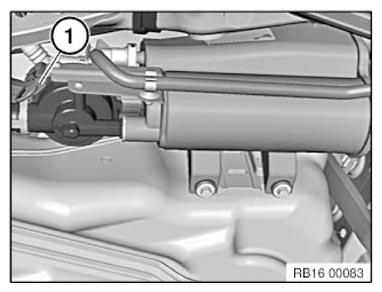

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fasteners (1) and remove tank ventilation lines.

Detach tank ventilation line from holder (2).

Release screws (3) and remove carbon canister (4).

Installation note:

Tightening torque: 16 13 1AZ .

The following components must be modified when the carbon canister is replaced:

PRESSURE SWITCH NVLD

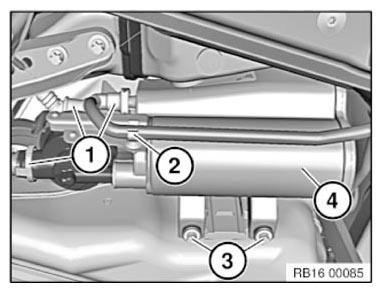

Fig 2: Identifying Tank Ventilation Lines Snap Fasteners, Carbon Canister, Screws
Courtesy of BMW OF NORTH AMERICA, INC.
