16 12 010 Removing and installing or replacing carbon canister
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove the TANK COVER on the right.

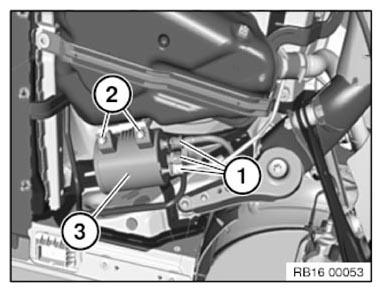

Unlock quick-release fasteners (1) and disconnect vent lines.
Release screws (2) and remove carbon canister (3).
Installation note:
Tightening torque: 16 13 1AZ .
