27 00 270 Change transfer box oil (ATC 35L)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Use only the APPROVED TRANSMISSION OIL
in the transfer box.
Failure to comply with this requirement will result in serious damage to the transfer box!
Failure to comply with this requirement will result in serious damage to the transfer box!
NOTE:
Only change oil when transfer box is at normal operating temperature.
Necessary preliminary tasks:
- Remove TRANSFER BOX .
Place oil collecting apparatus underneath.

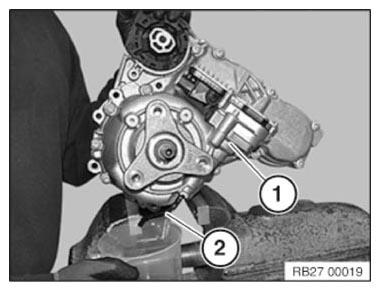

Drain and dispose of the transmission oil using the transmission breather (2).
- Observe country-specific waste disposal regulations
NOTE:
Do not drain transmission oil through the oil filler plug because complete emptying cannot be guaranteed using the oil filler plug!
Install TRANSFER BOX .

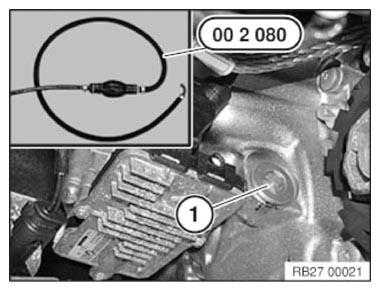

Undo oil filler plug (1).
Tightening torque 27 10 2AZ .
Use special tool 00 2 080 to top the transmission oil up to the lower edge of the filler screw opening.
Installation note:
Renew oil filler plug with O-ring.
