24 00 054 Installing exchange transmission (GA8HP45Z) (N20, N26)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
Drain automatic transmission fluid at oil drain plug.
Tightening torque 24 11 2AZ .
IMPORTANT:
After completion of work, program control transmission control unit.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.
IMPORTANT:
- Before installing exchange transmission, always flush TRANSMISSION OIL COOLER TOGETHER WITH LINES .
- After completion of work, CHECK TRANSMISSION OIL LEVEL .
- USE ONLY APPROVED TRANSMISSION OIL
.
Failure to comply with this requirement will result in serious damage to the automatic transmission
Exchange transmissions come filled with oil
Necessary preliminary tasks:
- Remove AUTOMATIC TRANSMISSION .
- Modify TRANSFER CASE .
Modify transportation retainers.
Convert all cable clips.
Convert all seal plugs.
Convert protective cap on output shaft.
IMPORTANT:
After removing transportation retainer, secure torque converter against slipping out.

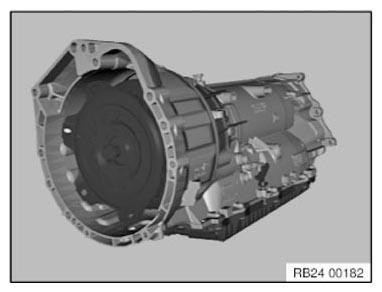

Transmission identification:
- On type plate
