24 40 014 Removing and installing/replacing torque converter (GA8HP45Z) (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only APPROVED TRANSMISSION OIL .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION .

Screw special tool 24 4 000 into torque converter.

Remove torque converter and set down vertically.

NOTE: When torque converter is removed, transmission oil flows out.

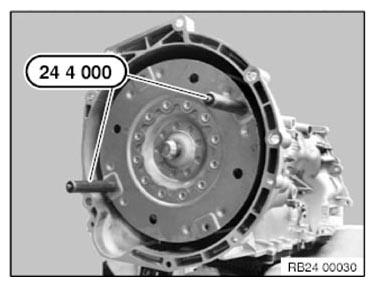

Fig 1: Screwing Special Tool (24 4 000) Into Torque Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing, do not damage radial shaft seal and bearing.

If the torque converter is not correctly installed, the driver of the pump impeller may be damaged when the transmission is flanged to the engine.

Installation note:

O-ring on drive shaft, must be replaced when exchanging the torque converter.

Push torque converter through radial shaft seal onto transmission shaft to the limit position.

Press torque converter by hand into converter housing and turn in the process. Converter hub recess must snap into place in driver of pump impeller. The torque converter must be felt to slip inwards.

Fig 2: Pressing Torque Converter

Courtesy of BMW OF NORTH AMERICA, INC.

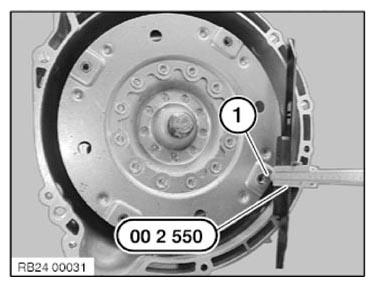

Determine distance between contact surface and surface (1) of threaded hole in torque converter with special tool 00 2 550 .

NOTE: The measured value must be ≥ 12 mm.
