33 52 161 Replacing rear left or right support bearing for spring strut/shock absorber

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

Remove the SHOCK ABSORBER .

Remove protective cap (1) and sealing washer (2).

Installation note:

Replace the faulty components.

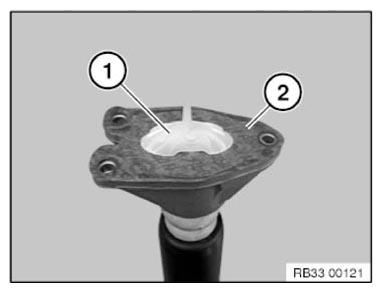

Fig 1: Identifying Protective Cap And Sealing Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tools 2 355 965 and 2 355 966 to undo the nut (1).

Tightening torque 33 52 2AZ .

Installation note:

Replace nut.

Fig 2: Removing Nut Using Special Tools (2 355 965 And 2 355 966)

Courtesy of BMW OF NORTH AMERICA, INC.

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber!
