33 17 004 Replacing all rubber mounts for rear axle final drive mounting at front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 5 166
33 5 163
33 5 162
33 5 161
33 4 465
33 4 466
33 5 105
33 5 165

IMPORTANT: Do not press in and out rubber mount several times.

Necessary preliminary tasks:

Remove REAR AXLE FINAL DRIVE .

Withdrawing rubber mount:

Pull out rubber mount with special tools 33 5 166, 33 5 163, 33 5 162, 33 5 161, 33 4 465 and 33 4 466.

NOTE: The milled recess of special tool 33 5 162 must point towards rear axle support.
Use ratchet ring spanner 33 5 105.

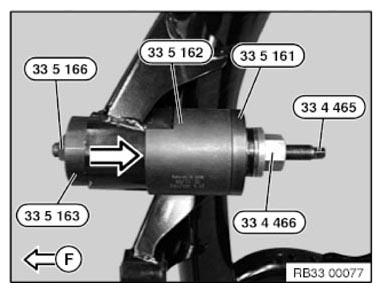

Fig 1: Pulling Out Rubber Mount With Special Tool (33 5 166)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

IMPORTANT: Align rubber mount horizontally by way of notches (1). Slot (2) on rubber mount points towards center of vehicle.

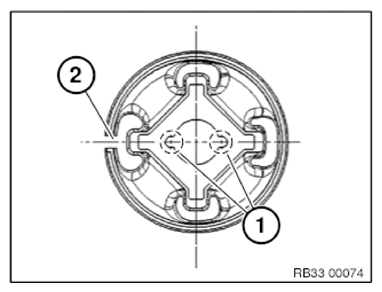

Fig 2: Identifying Rubber Mount Notches And Slot

Courtesy of BMW OF NORTH AMERICA, INC.

Pull on rubber mount (1) with special tools 33 5 165, 33 5 163, 33 4 465 and 33 4 466 as far as it will go.

NOTE: Use ratchet ring spanner 33 5 105.

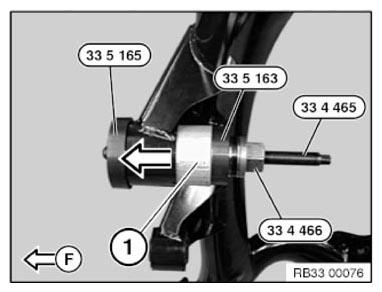

Fig 3: Pulling Rubber Mount With Special Tool (33 5 165)

Courtesy of BMW OF NORTH AMERICA, INC.
