33 32 165 Removing and installing or replacing tension strut
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle.
Driving without tension struts is not permitted!
Driving without tension struts is not permitted!

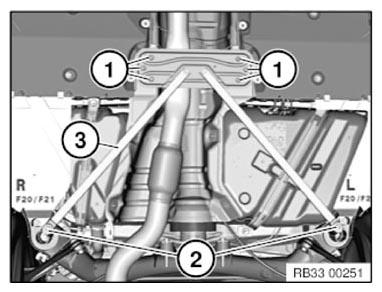

Release screws (1).
Tightening torque 33 32 12AZ .
Unfasten screws (2).
Tightening torque 33 32 13AZ .
Remove tension strut (3).
Installation note:
Replace screws (2).
Check threads for damage; if necessary, repair with HELI-COIL THREAD INSERTS .
