33 32 031 Replacing rubber mount for trailing arm in wheel carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 3 010
2 240 471
2 240 466
2 240 472

The rubber mount may not be reused after it has been pressed out!

Necessary preliminary tasks:

Remove TRAILING ARM .

Pulling out the rubber mount:

Pull out rubber mount with special tools 33 3 010 , 2 240 471, and 2 240 466.

NOTE: Align the slots on tool 2 240 471 with the wheel carrier so that it is resting straight.

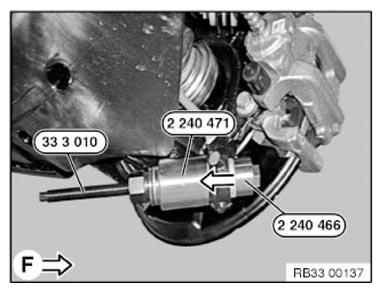

Fig 1: Pulling Out Rubber Mount With Special Tool (33 3 010)

G10095655

Courtesy of BMW OF NORTH AMERICA, INC.

Pulling in a new rubber mount:

Align the rubber mount with slot (1) upward in an angle to the wheel carrier.

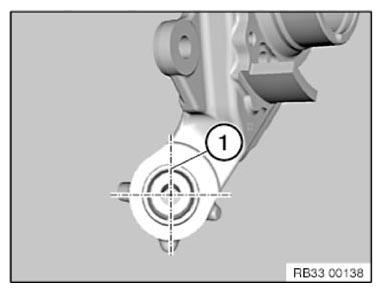

Fig 2: Identifying Rubber Mount Slot

G10095656

Courtesy of BMW OF NORTH AMERICA, INC.

Pull on rubber mount (1) with special tools 33 3 010 , 2 240 471, and 2 240 472 until limit position.

NOTE: Align the slots on tool 2 240 471 with the wheel carrier so that it is resting straight.

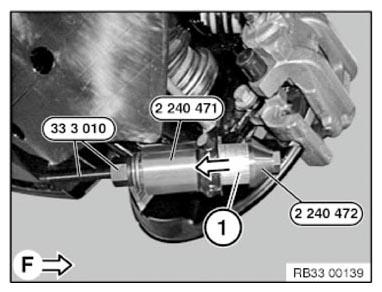

Fig 3: Pulling On Rubber Mount With Special Tool (33 3 010)

G10095657

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel alignment . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
