33 33 101 Replacing two rubber mounts (front) for rear axle support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 140
33 0 012
33 4 149
0 496 887
2 208 576
2 155 744
2 208 574
33 4 432
33 4 433

Necessary preliminary tasks:

Lower REAR AXLE SUPPORT .

Withdrawing rubber mount:

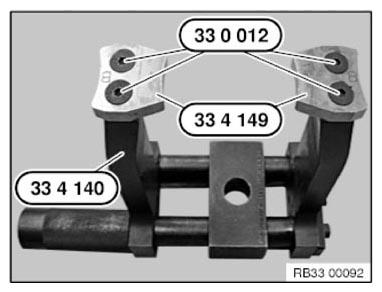

Complete special tool 33 4 140 using 33 0 012 and 33 4 149 , as shown.

Fig 1: Identifying Special Tools (33 4 140, 33 0 012 And 33 4 149)

G09947179

Courtesy of BMW OF NORTH AMERICA, INC.

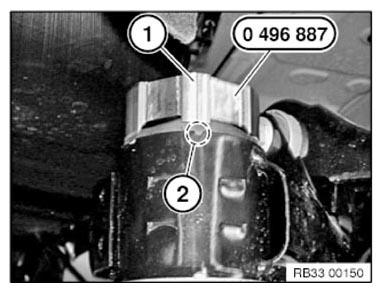

Align notch (1) on special tool 0 496 887 with notch (2) on the rear axle support.

Fig 2: Identifying Special Tool (0 496 887) And Rear Axle Support Notches

G10095660

Courtesy of BMW OF NORTH AMERICA, INC.

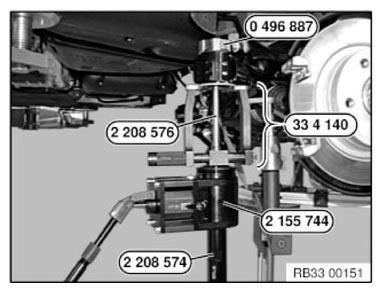

Pull out rubber mounts using special tools 0 496 887, 33 4 140 , 2 208 576, 2 155 744 and 2 208 574 pull out of the rear axle support.

NOTE: Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

Fig 3: Pulling Out Rubber Mounts Using Special Tool (0 496 887)

G10095661

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

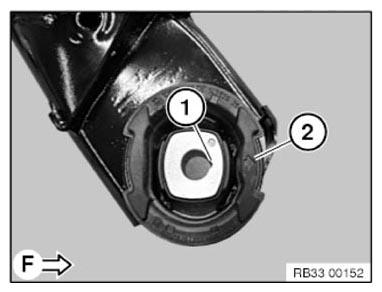

Notch (1) and arrow (2) of the rubber mount must point in the direction of travel.

Fig 4: Identifying Rubber Mount Notch

G10095662

Courtesy of BMW OF NORTH AMERICA, INC.

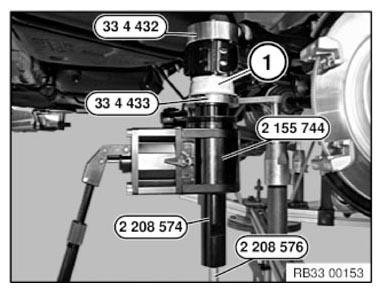

Draw in rubber mount (1) with special tools 33 4 432, 33 4 433, 2 155 744 , 2 208 574 and 2 208 576 to limit position.

NOTE: Align recesses on special tool 33 4 433 with rubber mount (1).

Fig 5: Inserting Rubber Mount With Special Tools (33 4 432 And 33 4 433)

G10095663

Courtesy of BMW OF NORTH AMERICA, INC.
