33 33 001 Replacing left or right rear axle support compression strut
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INFORMATIONS
for raising the vehicle
Driving without compression struts is not permitted!
Risk of damage!
The rear axle support must be supported at the front if both compression struts need to be replaced.
Driving without compression struts is not permitted!
Risk of damage!
The rear axle support must be supported at the front if both compression struts need to be replaced.
Necessary preliminary tasks:
- Remove TANK COVER .

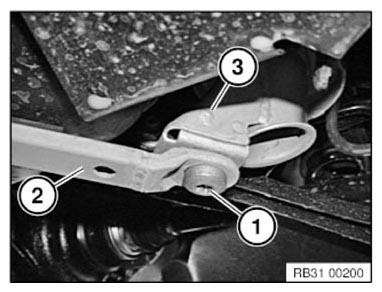

Release screw (1) from trailing link (2) and compression strut (3).
Tightening torque 33 32 13AZ .
Installation note:
Replace screw (1).

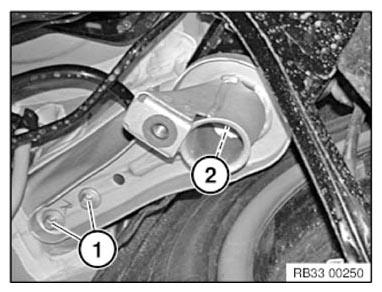

Release screws (1).
Tightening torque 33 33 2AZ .
Release screw (2).
Tightening torque 33 33 1AZ .
Remove compression strut.
Installation note:
Replace screws (1).
Check threads for damage; if necessary, repair with HELI-COIL THREAD INSERTS .
