SI number

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

08 12 14 (155)

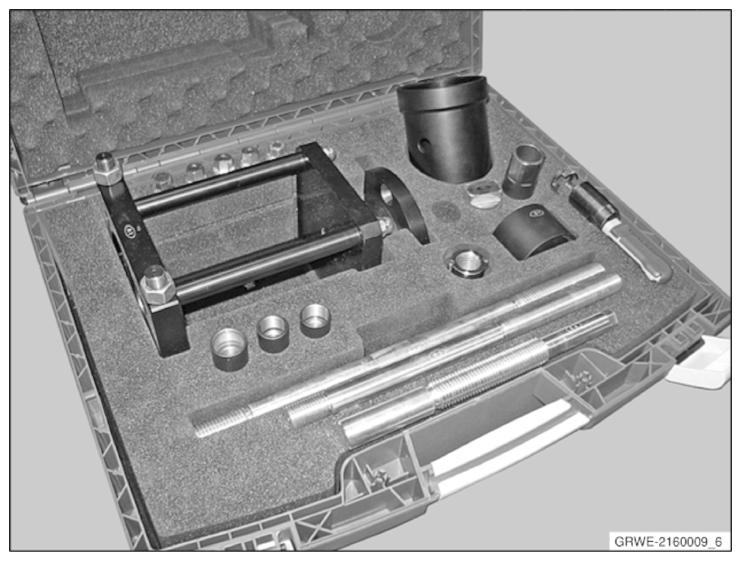

Fig 1: Identifying Tool Set (2155745)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 2156252 Device AM

2 = 2156253 Adapter AM

3 = 2156254 Holding sleeve AM

4 = 2156255 Washer AM

5 = 2156258 Holding sleeve AM

6 = 2156260 Adapter AM

7 = 2156265 Washer AM

8 = 2156271 Spindle AM

9 = 2159985 Adapter AM

10 = 2159986 Holding sleeve AM

11 = 2156276 Adapter AM

12 = 2156256 Adapter AM

13 = 2156257 Adapter AM

14 = 2159720 Adapter AM

15 = 2156262 Spindle AM

16 = 2156270 Spindle AM
