37 12 310 Replacing rear left or right bumper (adaptive M suspension)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
- When replacing the shock absorber, renew the auxiliary damper as well.
- READ AND COMPLY WITH INFORMATION ON REPLACING SHOCK ABSORBERS .
Necessary preliminary tasks:
- Remove SHOCK ABSORBER
Remove protective cap (1) and sealing washer (2).
Installation note:
Replace the faulty components.
Release nut (1) with special tool 2 355 965 and 2 355 966 .
Tightening torque 33 52 2AZ .
Installation note:
Replace nut.
Impact screwdrivers are prohibited!
Risk of damage inside the shock absorber!

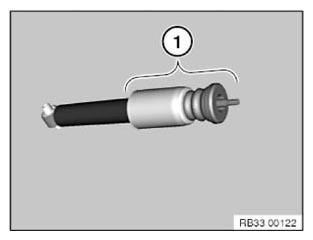

Replace auxiliary damper with protective tube (1).
