37 14 605 Replacing left or right wheel speed accelerator sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Disconnect plug connection (1) from acceleration sensor on the spring strut.

Release screw (1).

Tightening torque 37 14 6AZ .

Remove sensor.

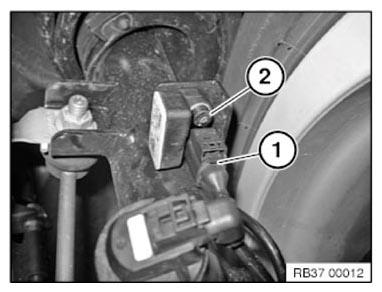

Fig 1: Identifying Acceleration Sensor Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check installation position.

Fit wheel speed acceleration sensor with retaining pin (1) into bore hole on the spring strut holder!

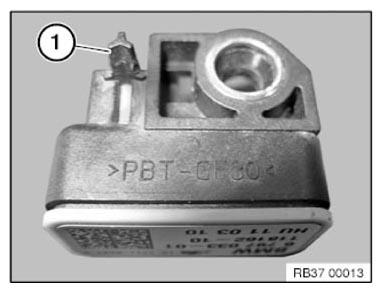

Fig 2: Identifying Wheel Speed Acceleration Sensor Retaining Pin

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Use the diagnosis system to perform the wheel speed accelerator sensor adjustment.
-> see service functions/start-up VDM
