37 14 566 Removing and installing/replacing control unit for Vertical Dynamic Control

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANELS (F31 only)

F30/F32/F33/F35:

Remove flap (1) on rear right in luggage compartment trim panel.

Fig 1: Identifying Luggage Compartment Trim Panel Flap

G10102908

Courtesy of BMW OF NORTH AMERICA, INC.

F31:

Lift out expanding rivets (1) and cover (2) for adaptive mounting system using special tool 64 1 020.

Remove luggage compartment trim panel in direction of arrow.

Fig 2: Removing Luggage Compartment Trim Panel

G10096056

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Unlock connector (2) and remove.

Remove control unit.

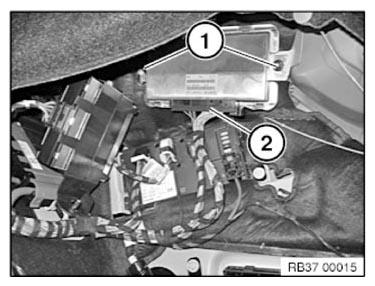

Fig 3: Identifying Control Unit Nuts And Connector

G10096057

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out PROGRAMMING/ENCODING
Start up the VDM with the aid of the diagnosis system
Carry out RIDE HEIGHT ADJUSTMENT
