22 11 110 Replacing left engine support arm (N47)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure ENGINE IN INSTALLATION POSITION .

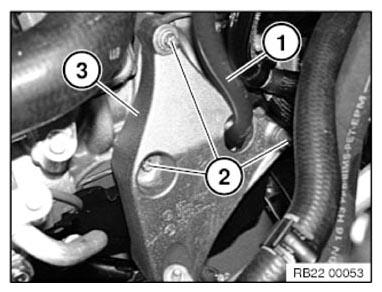

Remove GUIDE TUBE of dip stick (1).
Unscrew screws (2).
Tightening torque 22 11 3AZ .
Remove engine support arm (3).
