22 11 001 Replacing right engine mount (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE right engine support arm.

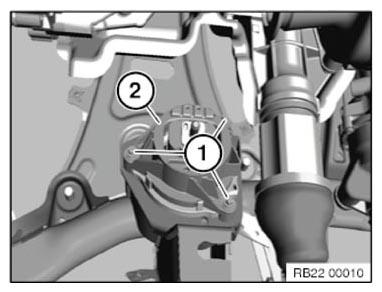

Release screws (1) and remove engine mount (2).

Tightening torque 22 11 1AZ .

Fig 1: Identifying Engine Mount And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

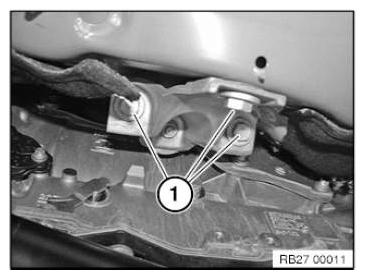

Rubber buffer (1) on engine mount must point towards center of vehicle.

Fig 2: Identifying Engine Mount Rubber Buffer

Courtesy of BMW OF NORTH AMERICA, INC.
