334010 Mandrel Mechanical tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Drive-out mandrel) For the rear axle shaft/Replaced by 33 2 116.(0 492 175) and 33 4 200.(0 492 436)

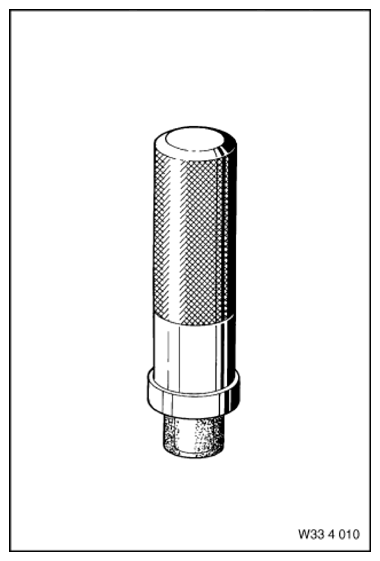

Fig 1: Identifying Mandrel (334010)

Courtesy of BMW OF NORTH AMERICA, INC.
