SI number

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 05 90 (207)

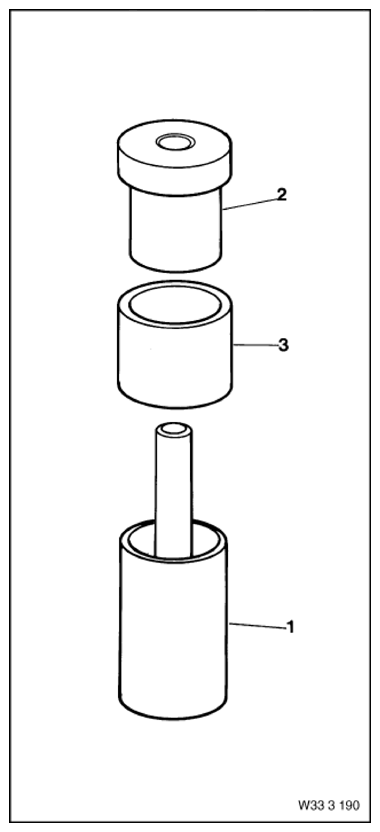

Fig 1: Identifying Tool (333190)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0492257 Bush

NOTE: For holding the wishbone when pressing out the rubber mount

2 = 0492258 Synchronizing key

NOTE: For pressing out the rubber mount from the wishbone

3 = 0492259 Holding sleeve

NOTE: (Spacer sleeve) for pressing in the rubber mount in the wishbone
