26 20 000 Removing and installing front propeller shaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not move vehicle with engine power once propeller shaft has been removed.
IMPORTANT:
On four-wheel drive vehicles with defective, non-engaging drive, it is imperative that the following information is taken account of.
- Additional work when replacing propeller shaft. See 26 ADDITIONAL WORK ON FOUR-WHEEL DRIVE VEHICLES AFTER DRIVING WITH DEFECTIVE (NON-ENGAGING) DRIVE .
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .

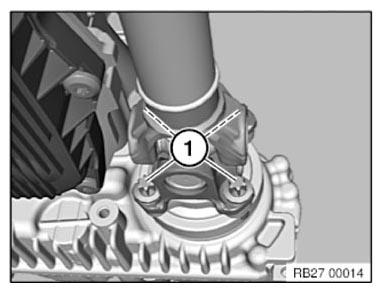

Release screws (1).
Tightening torque 26 11 7AZ .
Installation note:
Replace screws (1).
Release screws.
Tightening torque 26 11 7AZ .
Remove propeller shaft.
Installation note:
Replace screws.
