240150 Clip AM

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Mounting bracket) For mounting the transmission on the assembly stand

Consisting of:

6 = 0493913 Spindle

NOTE: With synchronizing key, transmission: All

3 = 0491645 Shaped part

NOTE: (Shaped part) For mounting the transmission/transmissions: A5S 310Z

2 = 0491646 Frame

NOTE: (Main frame)

3 = 0491647 Spindle

NOTE: (Spindle with rotary handle)

3 = 0491648 Bolt

NOTE: (Mounting bolts)

3 = 0491649 Bush

NOTE: (Spacer bush for spindle) Transmissions: A4S 310R

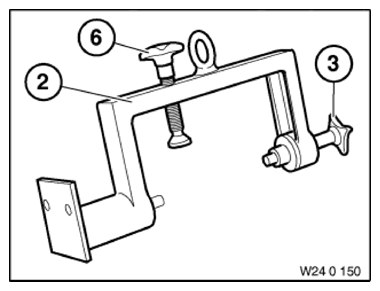

Fig 1: Identifying Clip (240150)

Courtesy of BMW OF NORTH AMERICA, INC.
